How Do I Create a POD?

Create POD files in order to reuse items you have created in other Templates, and to make updating them across multiple Templates easier.  Once you create a POD file, follow these instructions to load and use the files.

What Are PODs?

PODs are a way to save something you created in Microsoft Office which can be reused later by a simple drag and drop. POD is a term specific to Windward products that defines a group of items in a Template as specified by the report designer. Portable Object Doclets (PODs) are portable snippets of Microsoft Word or Excel objects, meaning they can be moved and used in other TemplatesThe stored PODs of information can be helpful in a number of circumstances.

 PODs can be saved and used in any Word or Excel Template and may contain

  • Windward Tags
  • Data source connections
  • Variables
  • Blocks of text
  • Tables
  • Images and more

When you create a POD, you create an XML file that defines all the Tags and their associated data source connection information. You can create this file coding it by hand, but a faster and easier way is to use Report Designer's built-in functionality shown below.

Create POD Doclet Interface

To bring up the Create POD Doclet Interface, click on the "Create POD" button on the AutoTag Manager tab of the Office ribbon, and select "Data Source" or "Standard" POD. The interface for the two different POD types are slightly different, as we shall see.

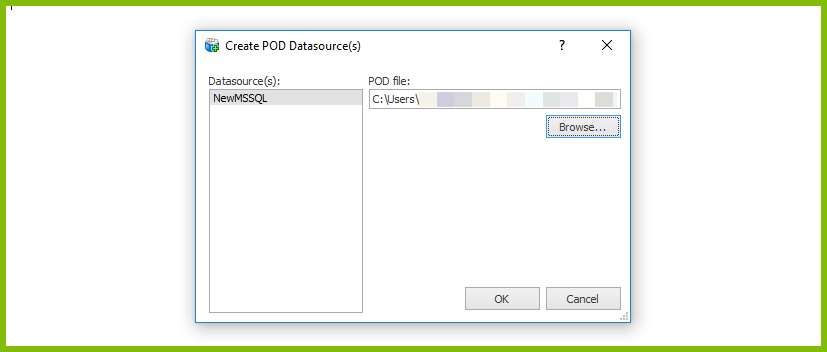

Create POD Datasource(s) Dialog

Datasource(s): Select the data source for this POD file

POD file: Select a name for the POD file (.rdlx)

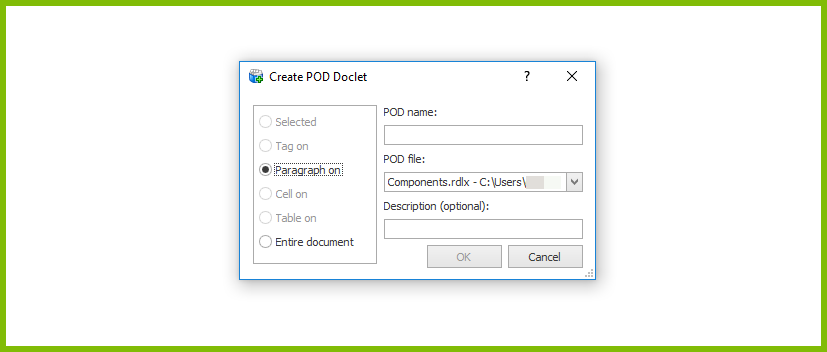

Create POD Doclet Dialog

POD Type Pane - define the type of selection made in the Template to be created as a POD

Selected - create a POD for a highlighted region

Tag on - create a POD for a highlighted Tag

Paragraph on - create a POD for all selected items before the Tags before the end of the paragraph (i.e. paragraph return character)

Cell on - create a POD of the selected cell within a table

Table on - create a POD of the selected table

Entire document - create a POD that will copy the entire document including all Tags

POD name: the nickname for a POD. This will appear in the POD Bin

POD file: this field holds one of three values

  • the full pathname of the currently loaded POD file, or
  • browse... - launches a browser window to navigate to an existing POD file.  The window only shows .rdlx files, or
  • new... - launches a browser window allowing you to create a new POD filename.

Description (optional): a description of the POD's contents or purpose to help users identify the POD's use.

An Example POD

Before creating doclet PODs you must create a Data Source POD first.

Create a Data Source POD and POD File

Click on the "Create POD" button on the AutoTag Manager tab of the Office ribbon, then select "Data Source POD".

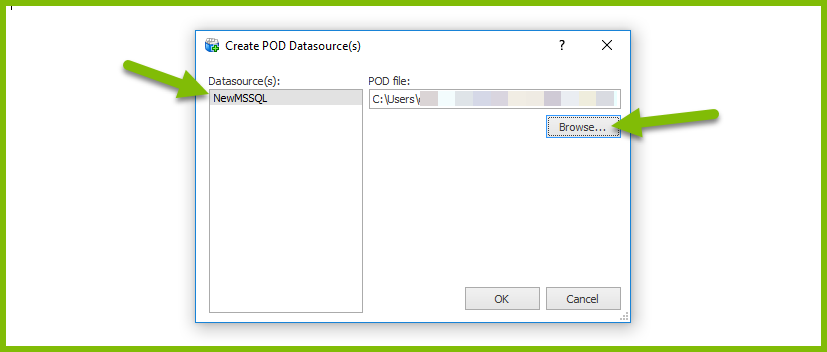

The "Create POD Datasource(s)" dialog appears. The dialog displays all of the data sources connected to your Template. The dialog is used to create a POD (.rdlx) file. Select the data source for which you wish to create a POD, then use the "Browse..." button to enter the name and location of the POD file.

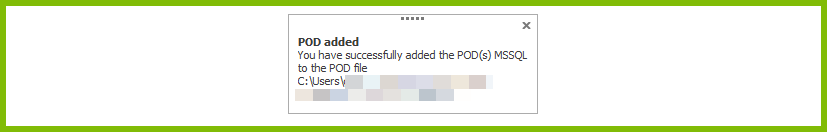

A pop up notification will appear on your screen confirming you have successfully created a data source POD.

Create a Doclet POD

Now we are ready to create a doclet POD. For this example, we'll use the attached Template.

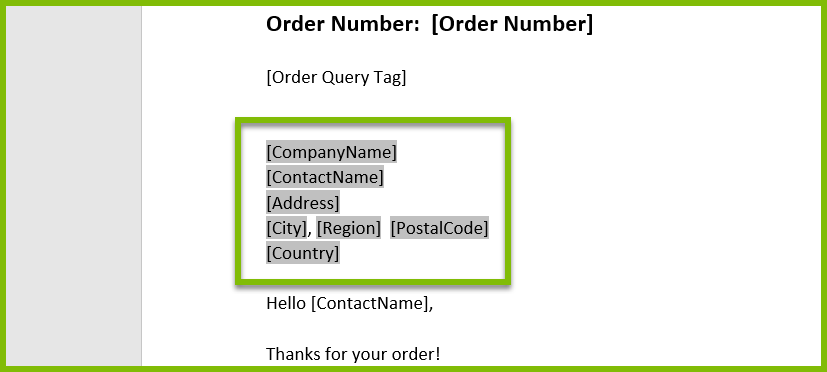

First, create a data source POD as shown above. Then select the region of the Template you wish to include in the doclet POD.

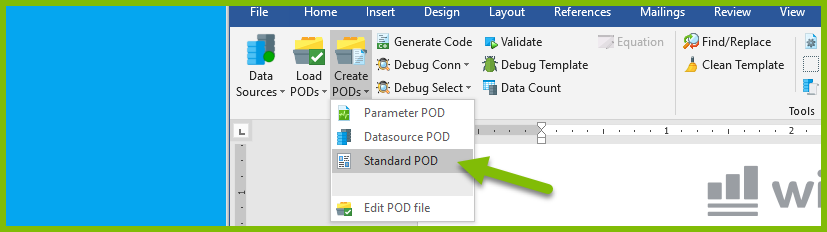

Go back to the Create POD button in the AutoTag Manager Ribbon. This time select "Standard POD" to launch the Create POD Doclet window.

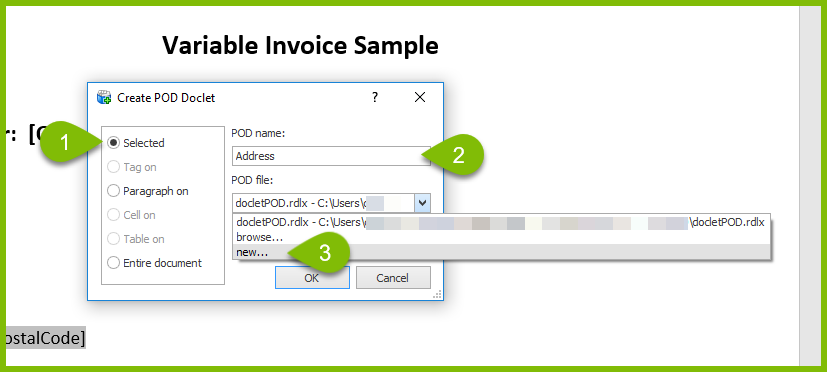

  1. Choose "Selection" for the  POD option in the left-hand pane. We use this option because we have highlighted and selected several items in the Template as opposed to the whole document or other elements.
  2. Enter the name "Address" to your POD under Pod name.
  3. Next, click the dropdown menu for the Pod file (either browse or the dropdown) and pick "new" to make a new POD. This will bring up a dialog to name and save your new POD file to a specific location.

Make sure that you do not write over an existing POD file.

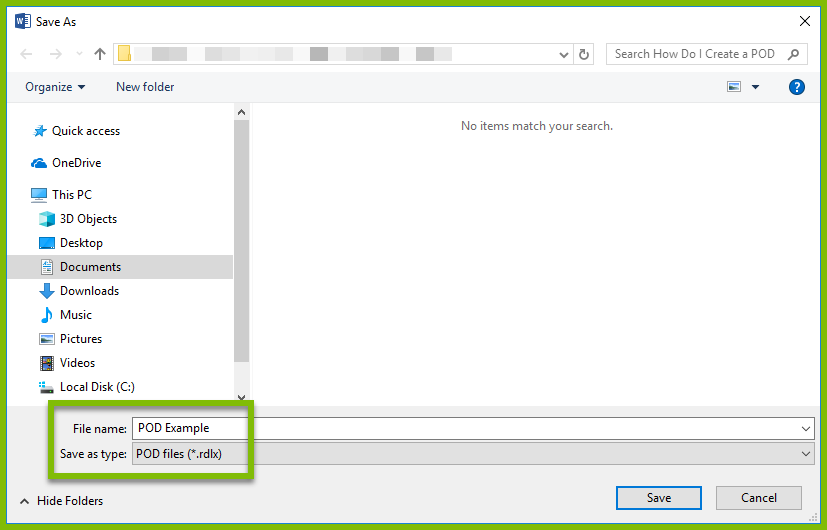

In the new window, enter the filename "POD Example.rdlx" for your POD filename, then click on Save.

Back in the Create POD Doclet window, enter a description. In this example, we'll add the text "Address block including Company and Contact Name" in the "field (which is optional)." Then click on OK to save the POD file.

You have created your first POD! Now go to these articles to learn how to load and use PODs.
