JsonPath Wizard Reference

The JsonPath Wizard is a user interface that allows users to build JsonPath (or JPath) statements without needing to know how to code JPath. JPath is a query language that allows the traversal of a JSON structure with XPath-like navigation.

This article will introduce you to the Wizard. For a detailed example that uses the Wizard, see [How Do I Create a Select Statement With the JPath Wizard?]

The JsonPath Wizard Interface

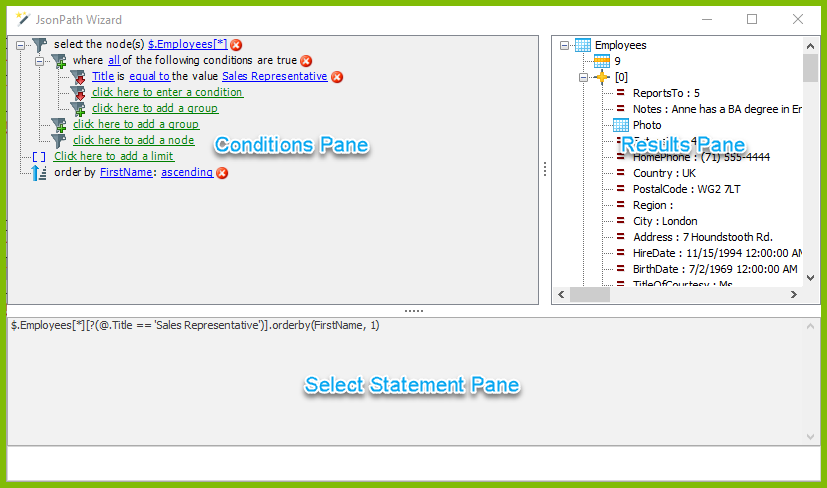

The Wizard is comprised of three panes: the Conditions Pane; the Data Pane and the Select Statement Pane.

Conditions Pane

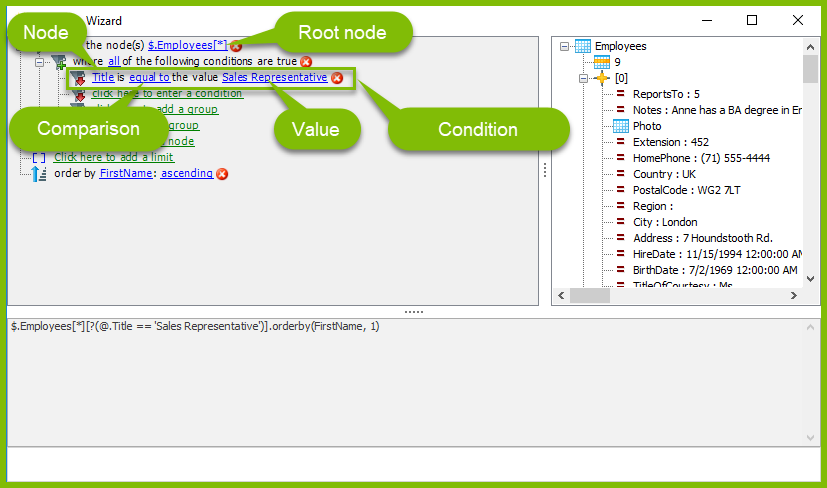

The Conditions Pane is where you create the conditions that will be applied to the data. A condition is made up of a node, a comparison and a value. You can see those three elements labeled in the screenshot below.

  • The root node is the JSON node you first selected and to which the conditions you create are applied. It is good practice to select the highest node possible in order to return as much data as you need. Then you can use conditions and additional nodes to filter the data you want returned later.
  • The node (or subnode) is the data you wish to satisfy a condition. In this example's data source, the node contains the employees' titles.
  • The comparison is a drop-down list whose options are equal to, not equal to, greater than and less than. In this example, we chose the comparison equal to.
  • The value is what the data in the node will be compared to. In this example, we chose the value "Sales Representative."

Results Pane

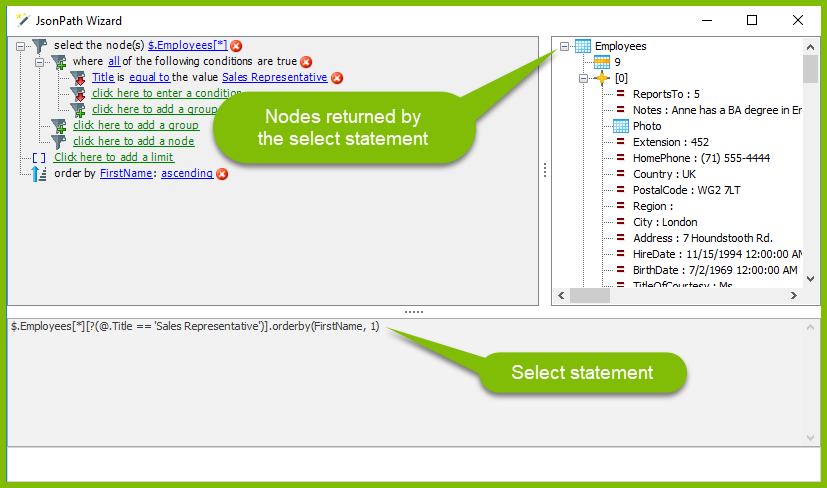

The Results Pane is a graphical view of the nodes returned by the select statement you create - it is updated in real time as you change the select statement.

Select Statement Pane

The Select Statement Pane shows the select statement created by the condition. When you click OK to close the Wizard, this is the text you will see in the Query Pane of the Tag Editor.

You may create multiple conditions within the Wizard. If you do so, the Wizard gives you the option of determining whether all or any of the conditions must be met.

One last note – the Wizard is called the "JsonPath Wizard" instead of the "JSON Wizard" because JPath is a query language used for finding information in a JSON data source. If you would like to learn more about how to build JPath select statements, this website is a great reference.
